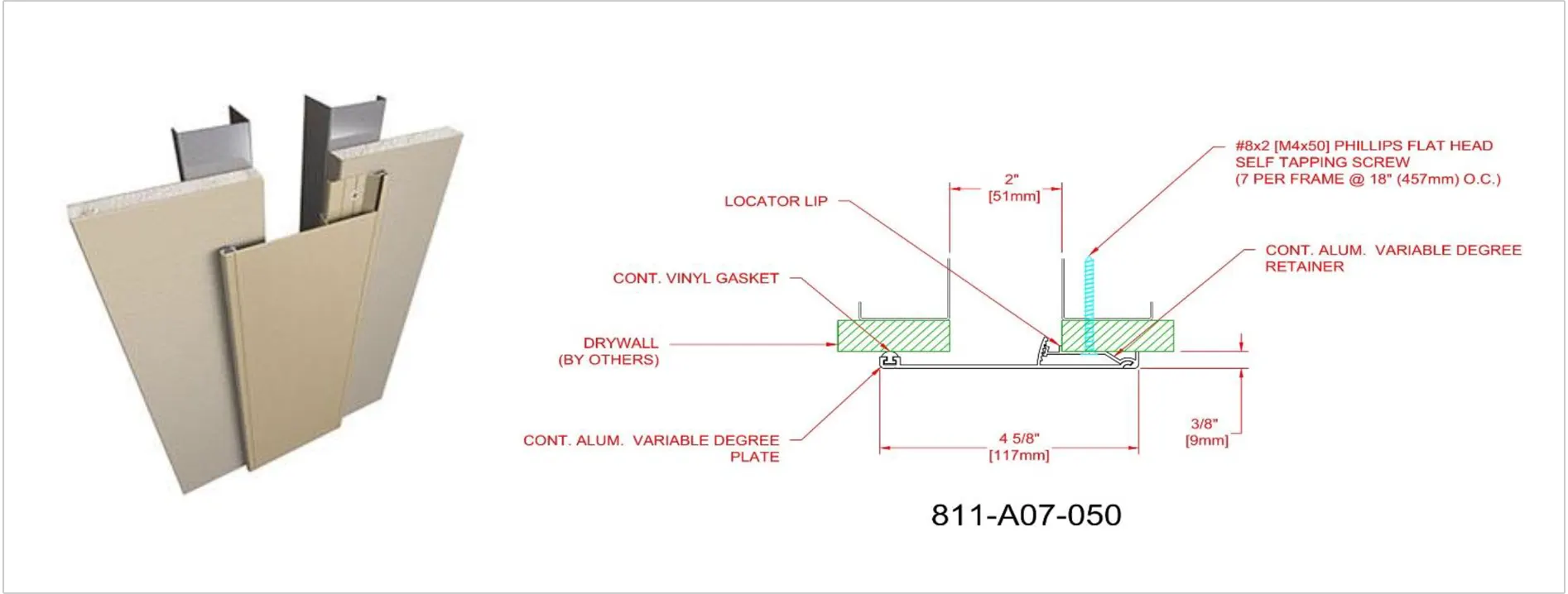

Wall to Wall Condition: System: 811-A07 Series

Specifications:

Providing and fixing 811 series of wall Expansion Joint assembly with continuous extruded aluminum (6063-T6) frame and the snap fit design cover assemblies of suitable profile to conceal hardware. Cover plate to receive frame by use of ratchet system as designed. System should be engineered to hold up the interior wall applications. Assembly with clear anodized finish accommodate thermal movement. Standard Nominal Joint applications 2-4” [50-100mm]. Joint operating range 50%+- of total nominal joint width. All as specified by INPRO.

Note: Suitable for Internal Walls for 25 mm, 50 mm & 100 mm Joint Size.
