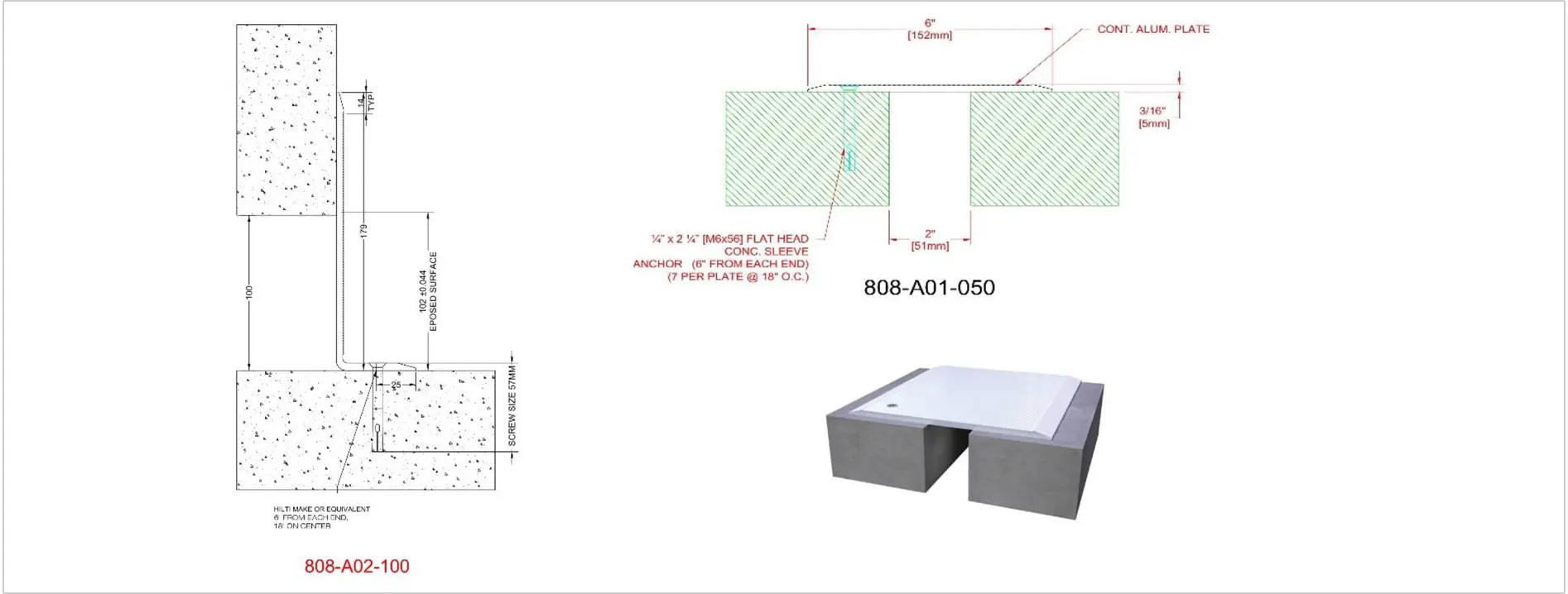

Floor/Wall Condition: System: 808-A01/A02 Series

Specifications:

Providing and fixing surface mount 808 series with continuous extruded aluminum (6005A-T61) one side anchored cover plate suitable for Floor to Floor and Wall to Wall Condition. Assembly should have beveled edges and serrations to provide traction for pedestrian safety. Standard Nominal Joint applications 2-4” [50-100mm]. Joint operating range 50%+- of total nominal joint width. All as specified by INPRO.

Providing and fixing surface mount 808 Series with continuous extruded aluminum (6005A-T61) one side anchored L plate suitable for Floor to Wall Condition. Assembly should have beveled edges and serrations to provide traction for pedestrian safety. Standard Nominal Joint applications 2-4” [50- 100mm]. Joint operating range 50%+- of total nominal joint width. All as specified by INPRO.

Note: Suitable for Internal/External areas on floors as well as on walls for 25 mm, 50 mm & 100 mm Joint Size.
