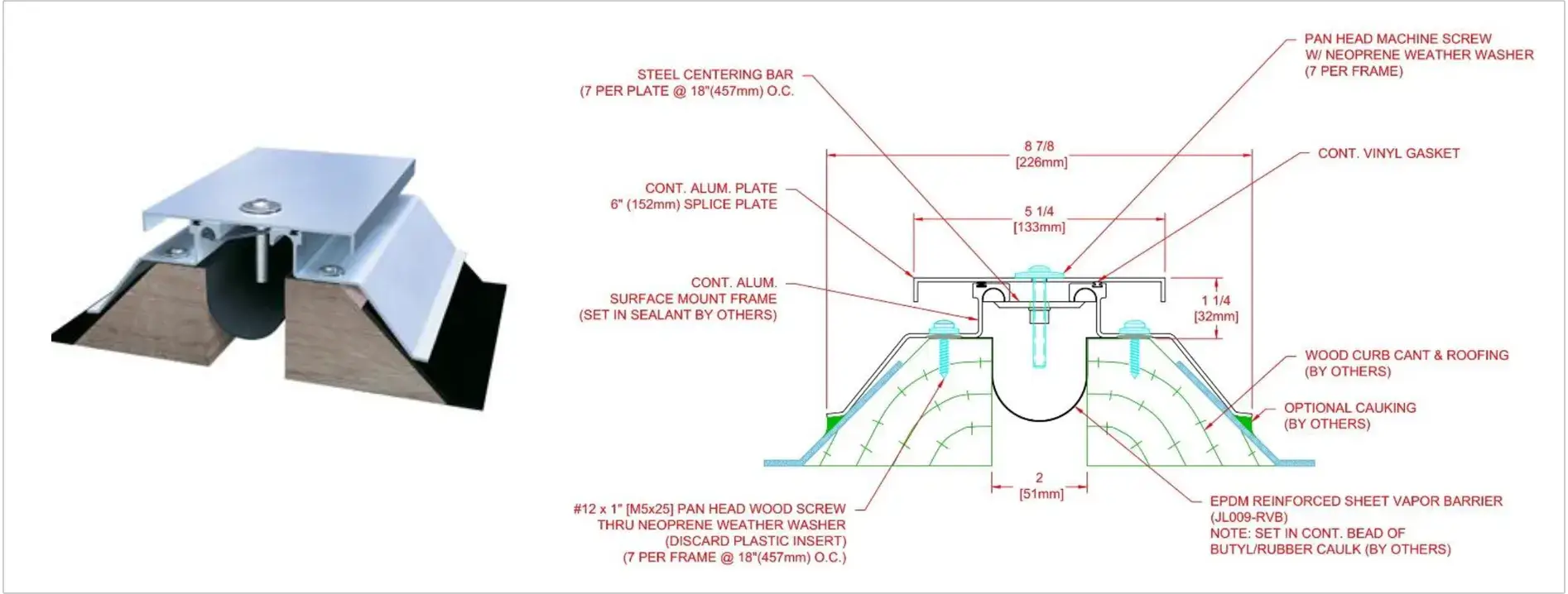

Roof Condition: System: 661-A01 Series

Specifications:

Providing and fixing 661 Series of Roof Expansion Joint Assembly with continuous extruded aluminum (6063-T6) frames of suitable profile to accept cover plate of design indicated. Cover plate to be held in place and kept centered throughout movement cycle by zinc plated steel center bars spaced 18” on center. System should be engineered to hold up the seismic movement at Exterior roof applications. Joint operating range 50%+- of total nominal joint width. Standard Joint range applications 2-6” [50-150mm]. All as specified by INPRO.

Note: Suitable for Roof areas for 50 mm, 100 mm & 150 mm Joint Size.
