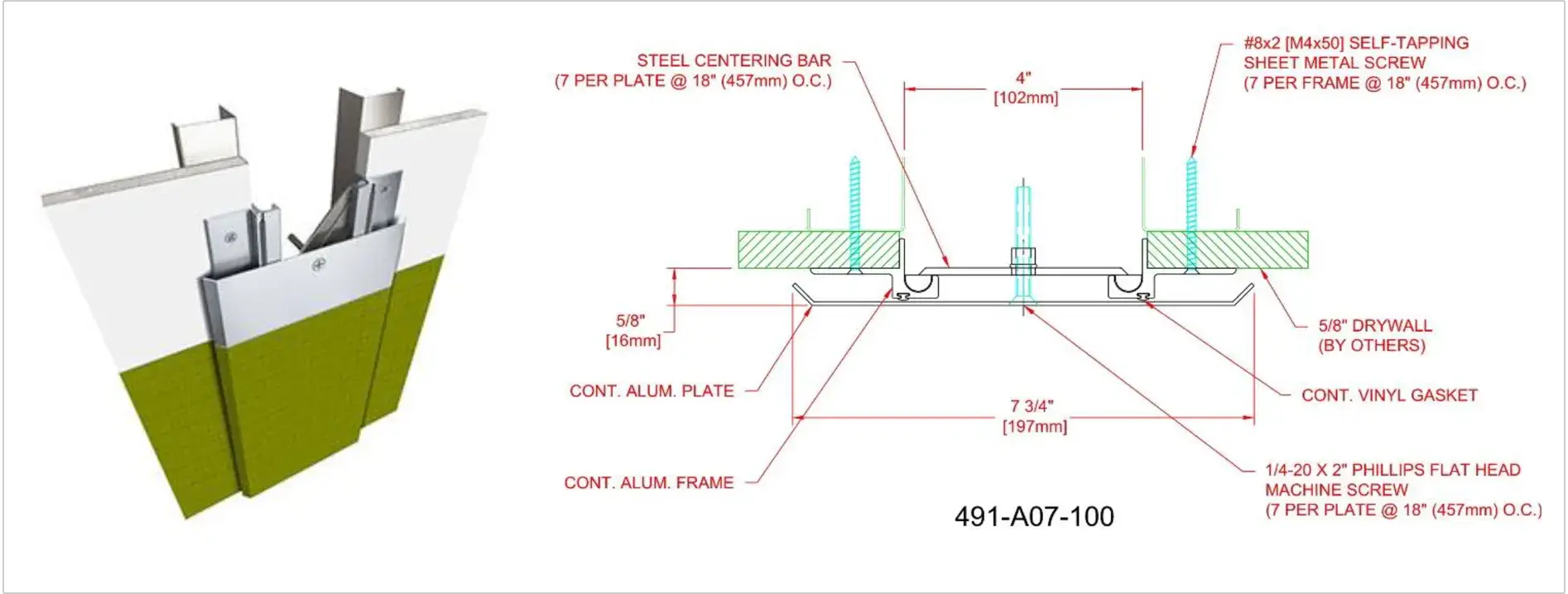

Floor to Floor Condition: System: 491-A07 Series

Specifications:

Providing and fixing 491 Series of Wall Expansion Joint Assembly with continuous extruded aluminum (6063-T6) frames of suitable profile to accept cover plate of design indicated for Wall Joint. System should be adaptable for dry wall and tile finish. Cover plate to be held in place and kept centered throughout movement cycle by zinc plated steel center bars spaced 18” on center. System should be engineered to hold up the exterior & interior wall applications suitable for seismic movement. Joint operating range 50%+- of total nominal joint width. Standard Joint range applications 2-8” [50-200mm]. All as specified by INPRO.

Note: Suitable for External Walls for 100 mm, 150 mm & 200 mm Joint Size.
